Samsung SDI · utility-scale

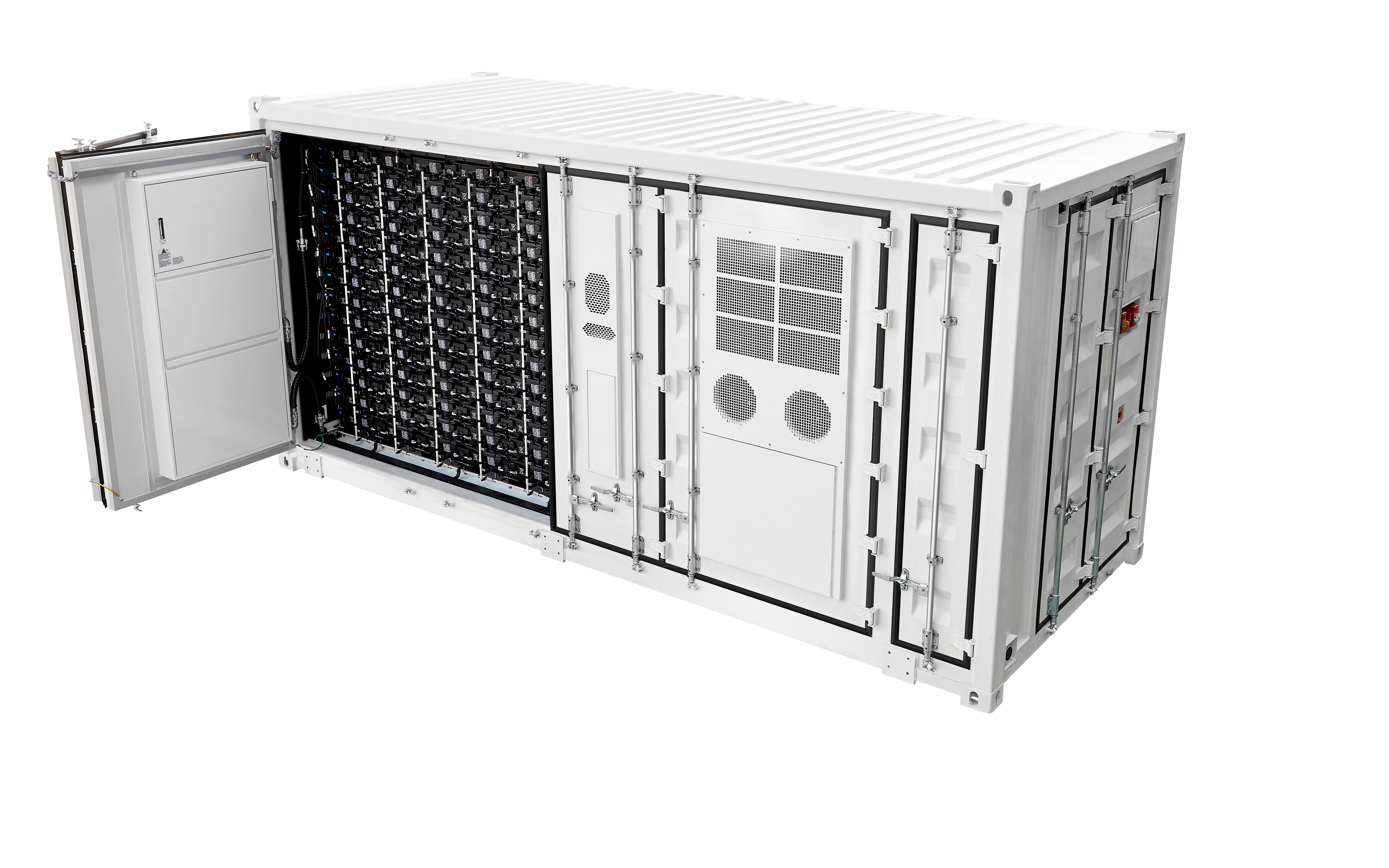

Samsung SDI SBB 1.5 (Samsung Battery Box)
shipping20 ft containerDC blockliquid-cooledNCA · 145 AhBNEF Tier 1
Everything below comes from what Samsung SDI publishes about the SBB 1.5 (Samsung Battery Box): the datasheet, the product page and press releases. Where a figure is not published, the field says so — we do not estimate.
Variants
Energy figures are nominal (beginning of life) as published by the manufacturer. One model, several duration options — the same enclosure with different power ratings.
| Variants | Energy | Power | Duration |
|---|---|---|---|
| 5.26 MWh, 2,630 kW max. power | 5.259 MWh | 2.63 MW | 2 h |
Specifications
| Cell chemistry | NCA |
|---|---|
| Cell capacity | 145 Ah |
| Cell configuration | 2P352S x 14P |
| Cell supplier | not published |
| Form factor | 20 ft container |
| Block type | DC block |
| PCS integrated | no |
| DC voltage | 1091–1460 V |
| Cooling | liquid-cooled |
| Ingress protection | not published |
| Operating temperature | not published |
| Dimensions (L × W × H) | 6058 × 2438 × 2896 mm |
| Weight | 40 t |
| Energy density | not published |
| Round-trip efficiency | not published |
| Cycle life | not published |
| Calendar life | not published |
| Warranty | not published |
| Fire suppression | EDI (Enhanced Direct Injection): extinguishing agent sprayed directly onto modules; active and passive venting, deflagration panels, smoke and gas detectors |
| Generation | 1.5 |
| Announced | 2024-06 |
Certifications
UL 1973UL 9540NFPA 855
Key facts
- Brochure: 5,259 kWh nominal, 2,630 kW max. power, NCA 145 Ah prismatic cells in 2P352S x 14P, 1091–1460 V operating window, 40 t
- DC enclosure with pre-populated AC & DC panels, chiller, HVAC and addressable fire panel; PCS external — up to seven SBBs per bank/PCS (brochure and newsroom)
- Brochure: 'UL9540 certified — NFPA 855, 69, and 13 compliant — satisfies UL9540A installation level test performance requirements'; certifications table lists UL1973, UL9540, NFPA855
- Energy density per container +37% vs SBB 1.0 (press release 2024-06-19); site layout figure 224 kWh/m2 for a 4-SBB repeatable unit
- CES 2025 Innovation Award honoree; supply to Tesvolt (DE) from Q2 2026 per press release 2025-06-11. RTE, cycle life, warranty and IP rating not published
What Samsung SDI does not publish for this model
These fields are empty because no public datasheet or release states them. That is information too: ask for these numbers before you shortlist.
Cell supplierIngress protectionOperating temperatureEnergy densityRound-trip efficiencyCycle lifeCalendar lifeWarranty
Price signal
not published
No published prices and no reliable tender data — we leave this null rather than guess. Directional guide: Korean NCA systems trade at a substantial premium to Chinese LFP (global ex-China turnkey average ~$125/kWh per BNEF 2025; US installed $230–320/kWh); the SBB 1.5 positions at the top of the market (20-year warranty, >95% RTE). Its large Tesvolt (Germany) contract was undisclosed.
From the Coloprice BESS Price Index — a benchmark, not an offer. See the index for how each figure was collected. See the BESS Price Index →
